Hp , Uhp 350mm Graphite Electrodes With Nipples

Availability:
Quantity:

UHP Grade Dia 350(14" inches ) * Length 1600mm , 1800mm , 1900mm , 2100mm..


Graphite Electrode for EAF , Steel Smelting


HP , UHP Graphite Electrodes With Nipples


UHP Graphite Electrode /Ultra High Powder  Graphite Electrodes  HP ,  UHP 350mm  Grpahite Electrodes


Specification

Electrode and Nipple

UHP Graphite Electrode Diameter

Ø200-500

Ø550-700

Specific Electric Resistance≤

μΩ.m

Electrode 5.5
Nipple 4.5

Bulk Density ≥

g/cm³

Electrode 1.68 1.7
Nipple 1.8

Compressive Strength≥

Mpa

Electrode 11.0
Nipple 20.0

Modulus ≤

Gpa

Electrode 14.0
Nipple

22.0

Ash≤

%

Electrode 0.1
Nipple 0.2

Coef. Thermal Expansion

(100-600℃) 100¯⁶/℃

Electrode

1.5

Nipple

1.4



Diameter (MM)

Length (MM)

Norminal Dia

Exact Diameter

Norminal Length



Allow Tolerance



Short Length Toerance

inches"

mm

Black ≤

3

75

78

73

72

1000/1200/1400/1600















±100















-275

4

100

103

98

97

1000/1200/1400/1600

5

130

132

127

126

1000/1200/1400/1600

6

150

154

149

146

1200/1400/1600/1800

7

175

179

174

171

1200/1400/1600/1800

8

200

205

200

197

1600/1800

9

225

230

225

222

1600/1800

10

250

256

251

248

1600/1800/2000

12

300

307

302

299

1600/1800/2000/2200

14

350

358

352

349

1600/1800/2000/2200

16

400

409

403

400

1600/1800/2000/2200

18

450

460

454

451

1600/1800/2000/2200

20

500

511

505

502

1800/2000/2200/2400

22

550

562

556

553

1800/2000/2200/2400

24

600

613

607

604

2000/2200/2400/2700

26

650

663

659

656

2400/2700

28

700

714

710

707

2400/2700


 1. XINGSHI Graphite Introduction .Introduction :


UHP graphite electrode is used for steel recycling in electric arc furnace industry.


Its main component is high-value needle coke, which is made of petroleum or coal tar.


The graphite electrode is machined in a cylindrical shape and a threaded area is machined at each end.

In order to meet the requirements of higher work efficiency and lower total cost, large capacity ultra-high power arc furnace is becoming more and more popular.



2. Features


  • High current resistance and high discharge rate.

  • Good dimensional stability and not easy to deform.

  • Resistance to cracking and spalling.

  • High oxidation resistance and thermal shock resistance.

  • High mechanical strength and low resistance.

  • High machining precision and good surface finish.

  • Uniform structure, good conductivity and thermal conductivity


3. Application


Graphite electrode is widely used in the production of alloy steel, metal and other non-metallic materials.

DC electric arc furnace.

AC arc furnace.

Submerged arc furnace.

Ladle furnace.


Steel Smelting

FerroAlloy furnace

Calcium Carbide Furnace

Silicon Metal Furnace


(1) Regular  power graphite electrode

It is allowed to use graphite electrode with current density lower than 17a / cm2, which is mainly used in ordinary power electric furnaces for steelmaking, silicon smelting, yellow phosphorus smelting, etc.

(2) Oxidation resistant coated graphite electrode

Graphite electrode coated with a layer of antioxidant protective layer (graphite electrode antioxidant). Form a protective layer that can conduct electricity and resist high-temperature oxidation, reduce the electrode consumption during steelmaking (19% ~ 50%), prolong the service life of the electrode (22% ~ 60%), and reduce the electric energy consumption of the electrode. The popularization and use of this technology can bring such economic and social effects:

① The unit consumption of graphite electrode is less, and the production cost is reduced to a certain extent. For example, in a steelmaking plant, based on the consumption of 35pcs graphite electrodes per week and 165 refining furnaces in the primary LF refining furnace without shutdown throughout the year, 373pcs graphite electrodes can be saved every year after the graphite electrode oxidation resistance technology is adopted

(153 tons) electrode, calculated at 3000USD per ton of ultra-high power electrode per year, USD 459,000 can be saved.

② The graphite electrode consumes less power, saves the unit steelmaking power consumption, saves the production cost and saves energy!

③ Because the graphite electrode is changed less times, the amount of labor and risk coefficient of operators are reduced, and the production efficiency is improved.

④ Graphite electrode is a low consumption and low pollution product. Today, when energy conservation, emission reduction and environmental protection are advocated, it has very important social significance.

This technology is still in the research and development stage in China, and some domestic manufacturers have also begun to produce it. It has been widely used in Japan and other developed countries. At present, there are also companies specializing in importing this anti-oxidation protective coating in China.

(3) High power graphite electrode. Graphite electrode with current density of 18 ~ 25A / cm2 is allowed to be used, which is mainly used in high-power electric arc furnace for steelmaking.

(4) Ultra high power graphite electrode.  UHP Graphite electrodes with a current density greater than 25A / cm2 are allowed. It is mainly used for ultra-high power steelmaking electric arc furnace.



4. Nipple


3TPI/T4L/T4N Or Customized



5.  Product Show :

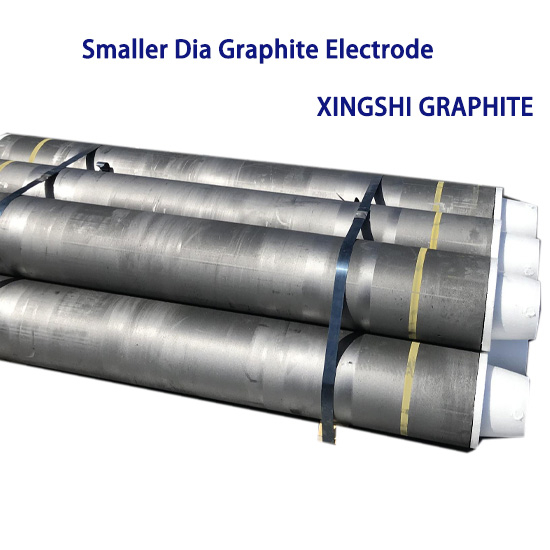

350 电极






Graphite Electrode More specification and Details :  For following just for your reference  :

The quality of our product is recognized by the quality examination center of the national metallurgy carbon material sampling analyze to all attain the YB/T4088-2015、YB/T4089-2015、YB/T4090-2015.

Standard Sizes of Electrode :If there are special specification requirements,both sides consult supply & demand.


For more detailed Sizes and Specs : Uhp Graphite electrode , Graphite electrodes , Hp Graphite Electrode , Rp Graphite electrode           φ200mm-700mm   Length 1800mm -2700mm


Model

Electric Resistance

μΩ·m

Modulus

Gpa

Compressive Strength

Mpa

Coef. Thermal Expansion rate

10-6/℃

Current  Density


A/cm2

Raw Material  Application Area
RP(Regular Powder Graphite Electrode) 0-9.5 6.0-9.3 6.0-9.3 1.8-2.5 ≤17 Petroleum Coke Steel , Ferroalloys ,Yellow Phosphours
HP ( High powder Graphite Electrode ) 5.0-7.5 8.0-12.0 8.0-12.0 1.6-2.0 18-25 Petroleum Coke and Needle Coke Steel , Ferroalloys ,Copper
UHP (Ultra- High Powder Graphite Electrode 4.0-7.5 9.0-14.0 9.0-14.0 1.2-1.5 ≥25 Needle Coke
Steel , Copper




For more details ,Kindly click the Button " Contact us " Talk to me on Line  or E-mail: sales@xingshi-material.com   , also Whatsapp ,wechat : +86 13028650772
