Graphite is one of the most versatile carbon materials used in modern industry. From traditional steelmaking and refractory products to lithium-ion batteries and advanced carbon materials, both natural graphite and synthetic graphite play important roles across a wide range of applications.
Although natural and synthetic graphite share many carbon-related properties, their application profiles can be quite different.
Natural graphite and synthetic graphite displayed side by side, with battery and steel industry applications in the background.
According to the 2024 application breakdown shown in the industry data, batteries represent a major application for natural graphite, accounting for approximately 52% of the illustrated demand.
Refractories are another important sector, representing around 24%. Natural graphite has long been used in refractory materials because of its high-temperature resistance, thermal conductivity and resistance to thermal shock.
Other applications shown include:
Castings – 8%
Other applications – 7%
Friction materials – 3%
Lubricants – 3%
Recarburising – 2%
Graphite shapes – 1%

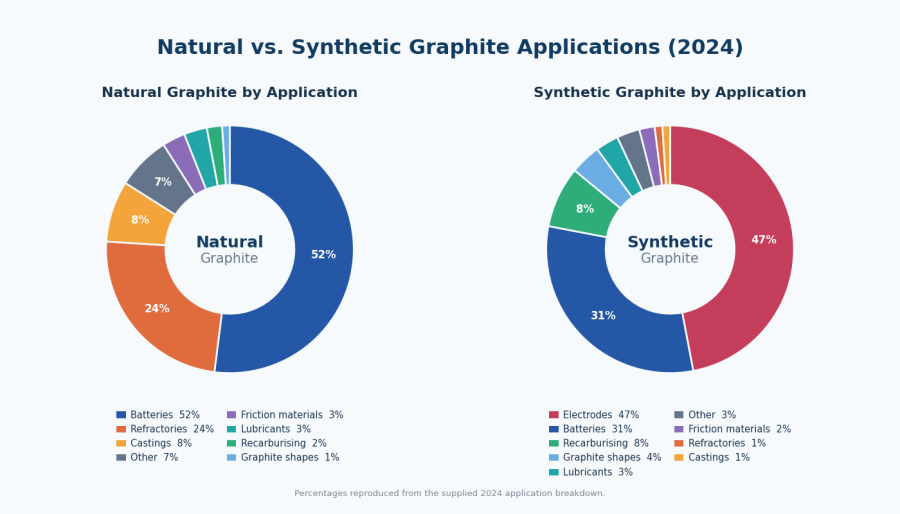

Natural Graphite by Application – 2024
Natural graphite is widely found in products such as refractory bricks, crucibles, ladle linings, foundry materials, lubricants and battery anode materials.
Different applications require different graphite specifications, particularly in terms of fixed carbon, particle size, ash, sulfur, moisture and other impurities.
Synthetic graphite, also known as artificial graphite, has a different application structure.
In the illustrated 2024 data, graphite electrodes account for approximately 47% of synthetic graphite applications, followed by batteries at around 31%.
Other applications include:
Recarburising – 8%
Graphite shapes – 4%
Lubricants – 3%
Other applications – 3%
Friction materials – 2%
Refractories – 1%
Castings – 1%
Graphite electrodes used in steelmaking + synthetic graphite granules/powder + recarburizer application.
Synthetic graphite is particularly important in electric arc furnace steelmaking, where graphite electrodes are required to conduct extremely high electrical currents at elevated temperatures.
Synthetic graphite powder and granules are also widely used as carbon raisers or recarburizers in foundries and steel plants where controlled carbon content, low sulfur and consistent particle size are important.
Despite rapid growth in battery-related applications, the steel and metallurgical industries remain important markets for graphite materials.
Graphite can be used in:
Graphite electrodes for electric arc furnaces
Refractory bricks and furnace linings
Ladle and crucible materials
Recarburizers and carbon additives
Foundry applications
High-temperature graphite components
The required graphite grade depends strongly on the production process. Steelmaking and foundry customers may focus on fixed carbon, sulfur, nitrogen, ash and particle size, while refractory manufacturers may place greater emphasis on graphite purity, flake size and oxidation resistance.
Graphite is also an important anode material for lithium-ion batteries.
Natural graphite can be purified and processed into spherical graphite for battery applications, while synthetic graphite is widely used where manufacturers require consistent structure, high purity and controlled electrochemical performance.
This means the graphite market is increasingly connected to both traditional industrial sectors and emerging energy-storage applications.
[IMAGE 5 – OPTIONAL]
Battery cells + processed graphite powder/spherical graphite. Keep the image technical and industrial rather than consumer-electronics focused.
There is no single graphite grade suitable for every application.
When selecting natural or synthetic graphite, buyers should consider:
Fixed Carbon: Different applications require different purity levels.
Particle Size: Graphite is available as fine powder, granules and various flake sizes.
Sulfur and Ash: Particularly important for metallurgical and recarburizing applications.
Bulk Density: An important parameter for certain industrial processes and carbon additives.
Application: Battery, refractory, foundry, steelmaking and lubricant applications may require completely different graphite characteristics.
Xingshi Graphite supplies a range of graphite and carbon materials for industrial customers, including natural graphite, synthetic graphite powder and granules, graphite electrode products, recarburizers and other carbon materials.
Specifications such as fixed carbon, sulfur content, particle size and packaging can be selected or customized according to the customer's application and technical requirements.
If you are looking for graphite materials for steelmaking, foundry, refractory, battery or other industrial applications, please contact us with your required specifications and application. Our team can help recommend a suitable graphite grade.
