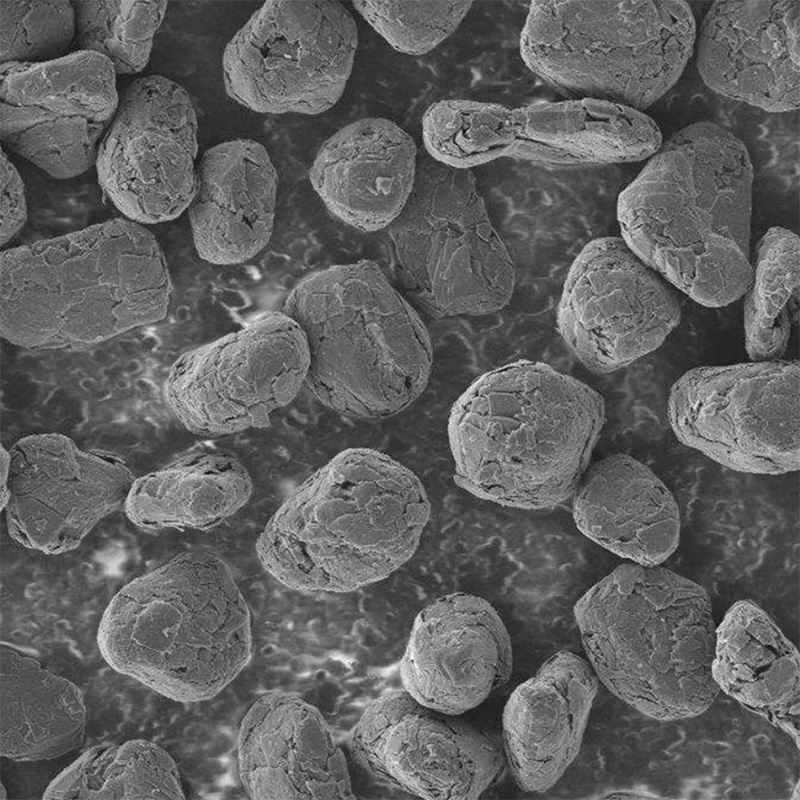

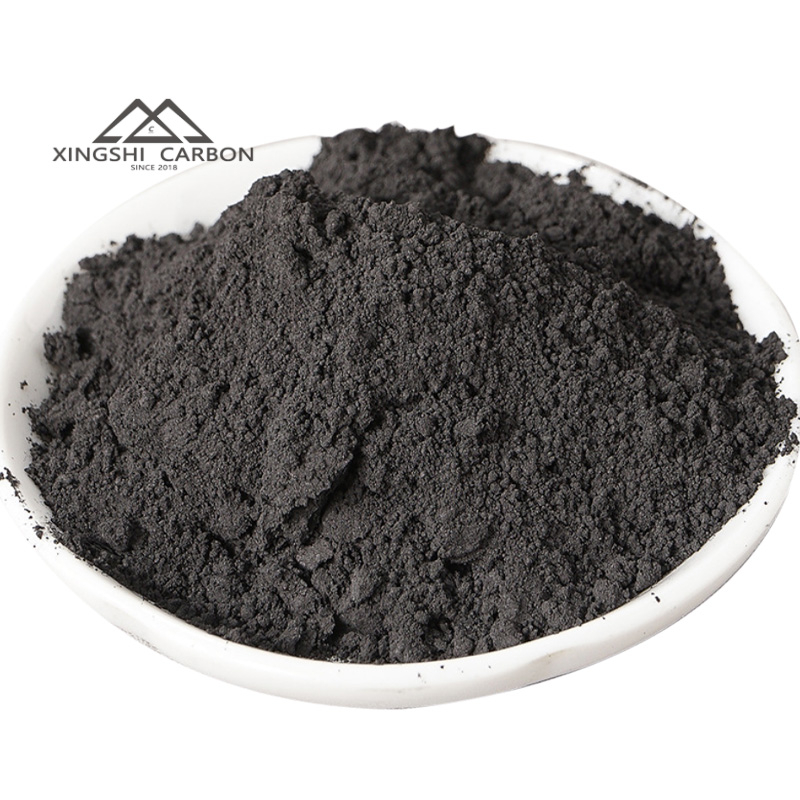

Spherical graphite is produced from high-quality and high-carbon natural flake graphite. The initial product then enters the purification workshop where it undergoes high-temperature purification to become spherical graphite, possessing excellent conductivity and chemical stability, high crystallinity, low cost, long service life of the seal ring, and environmental friendliness.
Applications:
Lithium batteries. electronic communication, aerospace, conductive ink
Spherical Graphite Powder Product Parameters
Product Model and Items |
|||||||||
Model |
Particle size (um) |
Tap (g/cm3) |
SSA (m2/g) |
Fixed Carbon (%) |
Moisture(%) |
Fe (ppm) |
|||
D10 |
D50 |
D90 |
Dmax |
||||||
| SG06 | 4-5 | 6-7 | 10-11 | / | ≥0.6 | ≤12.0 | ≥99.95 | ≤0.2 | ≤30 |
| SG08-1 | ≥4.0 | 7.5-9.5 | ≤15.0 | ≤30.0 | ≥0.8 | 8-10 | ≥99.9 | ≤0.2 | ≤30 |
| SG08-2 | 5--6 | 8--9 | 12-15 | ≤25 | ≥0.8 | 8--11 | ≥99.95 | ≤0.2 | ≤30 |
| SG10-1 | ≥5.0 | 9.5-10.5 | ≤25 | / | ≥0.85 | ≤7.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG10-2 | 6.5-8.5 | 9.5-11.5 | ≤25 | ≤26 | ≥0.9 | ≤8.50 | ≥99.95 | ≤0.2 | ≤30 |
| SG10-3 | ≥6.5 | 10-11 | ≤15 | ≤26 | ≥0.93 | ≤9.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG11-1 | 6-7.5 | 11-12 | 18-20 | / | ≥0.83 | ≤8.50 | ≥99.95 | ≤0.2 | ≤30 |
| SG11-2 | ≥5 | 9-13 | ≤22 | / | ≥0.70 | <8.00 | ≥99.95 | ≤0.2 | ≤30 |
| SG12 | ≥6.5 | 12-13 | ≤21 | / | ≥0.89 | <8.00 | ≥99.95 | ≤0.2 | ≤30 |
| SG15 | ≥9 | 15-16 | ≤26.0 | ≤40.0 | ≥0.98 | 5.5-6.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG16-1 | ≥9.5 | 15.5-16.5 | ≤30.0 | ≤45.0 | ≥1.00 | 5.5-6.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG16-2 | ≥10.7 | 16-16.5 | ≤26.0 | ≤40.0 | 0.93±0.03 | 6-6.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG17-1 | 10.5-12 | 16.5-18.5 | 27-29 | / | ≥0.98 | 5.5-6.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG17-2 | 10.5-12 | 16.5-18.5 | 27-29 | / | 0.94-0.96 | 5.5-6.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG17-3 | ≥10 | 16-17 | 25-27 | ≤40 | ≥1.00 | ≤6.5 | ≥99.95 | ≤0.2 | ≤30 |
| SG17-4 | ≥10 | 15.5-17.5 | 25-28 | ≤40 | ≥1.00 | ≤7.0 | ≥95 | ≤0.2 | ≤30 |
*NOTED : More details, Welcome your inquiry!
