▼ Product Description

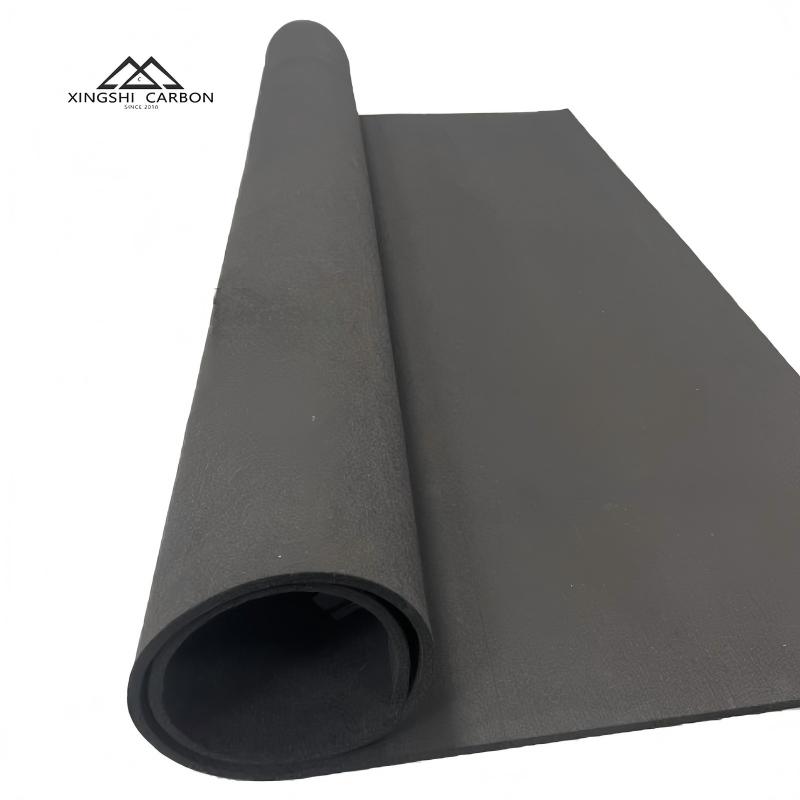

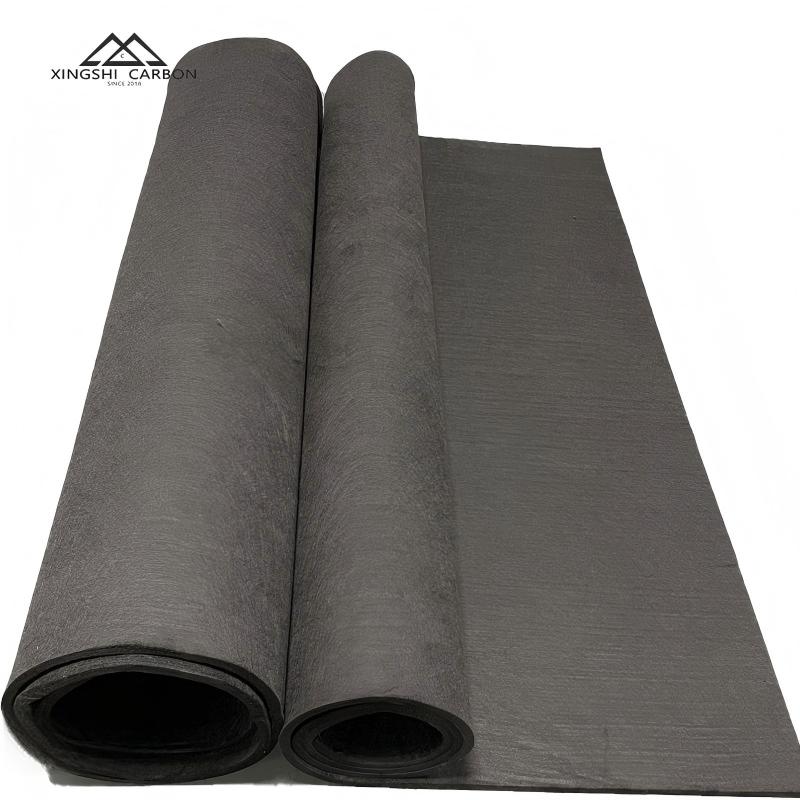

The Viscose-Based Carbon Fiber Graphite Felt series is made from Viscose based short fiber needle punched felt as raw material, which undergoes oxidation, low-temperature carbonization, high-temperature carbonization, and graphitization treatment. Due to the unique properties and structure of adhesive based fibers, the disadvantages of polyacrylonitrile graphite felt, such as easy powdering, rough surface, and sticking at continuous high temperatures, have been solved.
▼ Advantage
Compared with polyacrylonitrile(Pan-based) graphite felt, the energy-saving rate reaches over 15% and the service life of the material is significantly improved. Adhesive based carbon fiber graphite soft felt is produced by a continuous production line, with a product length of over 100 meters.
It has the characteristics of uniform felt surface, uniform conductivity, light weight, high temperature resistance, and corrosion resistance.
Viscose-Based Carbon Fiber Graphite Felt is manufactured through controlled carbonization of rayon fibers, offering:
✔ Superior Flexibility (vs. PAN-based felts)
✔ Uniform Porous Structure for even heat distribution
✔ Cost-Effective solution for medium-temperature applications (800-1600°C)
✔ Widely Used in solar crystal growth, battery anodes, and furnace insulation.
✔ 1200°C Oxidization-Resistant Viscose Felt
▼Parameters of Graphite Soft Felt material
Typical Specifications:
Density: 0.1-0.3 g/cm³ | Thickness: 3-12mm
Max Temperature: 1600°C (inert gas) | Purity: ≥99%
Model |
Thickness |
Density |
Width |
Ash |
Fixed Carbon |
Sulfur |
Thermal Conductity (1550℃) |
Tensile Strength |
mm |
g/cm3 |
mm |
ppm |
% |
ppm |
W/(m·K) |
MPa |
|
XSF-NG01 |
5/10 |
0.08-0.11 |
1200/1350 |
≤500 |
＞99.95 |
≤200 |
0.20-0.22 |
0.10-0.14 |
XSF-NG02 |
5/10 |
0.08-0.11 |
1200/1350 |
≤200 |
＞99.98 |
≤30 |
0.23-0.26 |
0.10-0.14 |
XSF-NG01S |
5/10 |
0.08-0.11 |
1200/1350 |
≤20 |
＞99.998 |
≤5 |
0.24-0.28 |
0.10-0.14 |
XSF-NG03S |
10 |
0.10-0.13 |
1200/1350 |
≤20 |
＞99.998 |
≤5 |
0.24-0.28 |
0.18-0.25 |

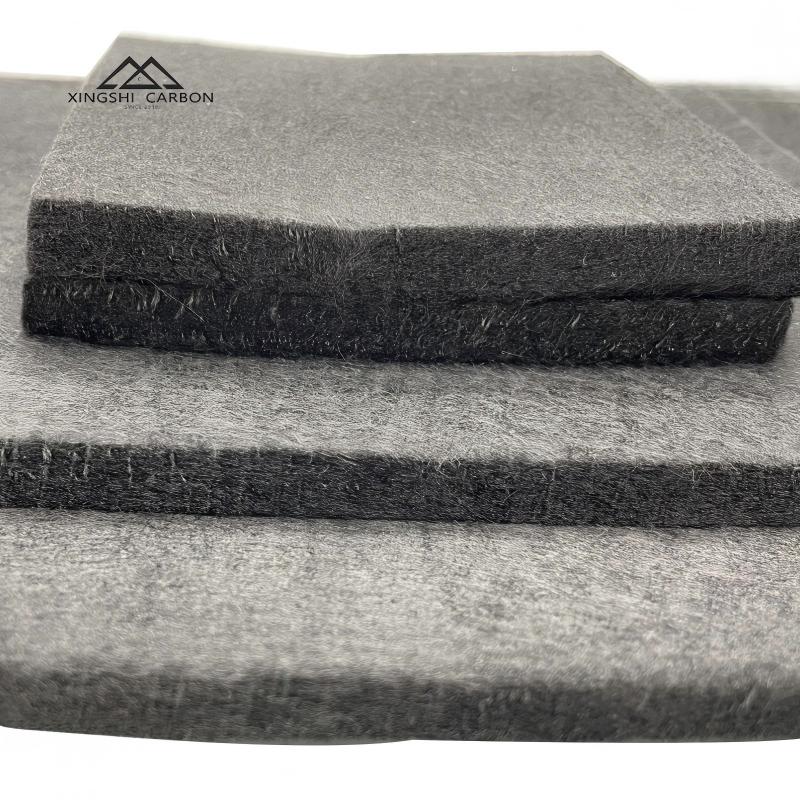

10mm Thick Rayon Graphite Felt Panel
0.1g/cm³ Ultra-Lightweight Carbon/Graphite Felt
▼Parameters of Graphite Soft Felt material
Thermal Insulation Viscose Graphite Felt
Battery Electrode Substrate Carbon Felt
Semiconductor Processing Graphite Felt
Aerospace Sealing Graphite Felt
Solar Silicon Crystal Growth Felt
China-made viscose graphite felt for thermal insulation & battery applications. Custom sizes, low thermal conductivity, 1600°C resistant. Request specs now!
