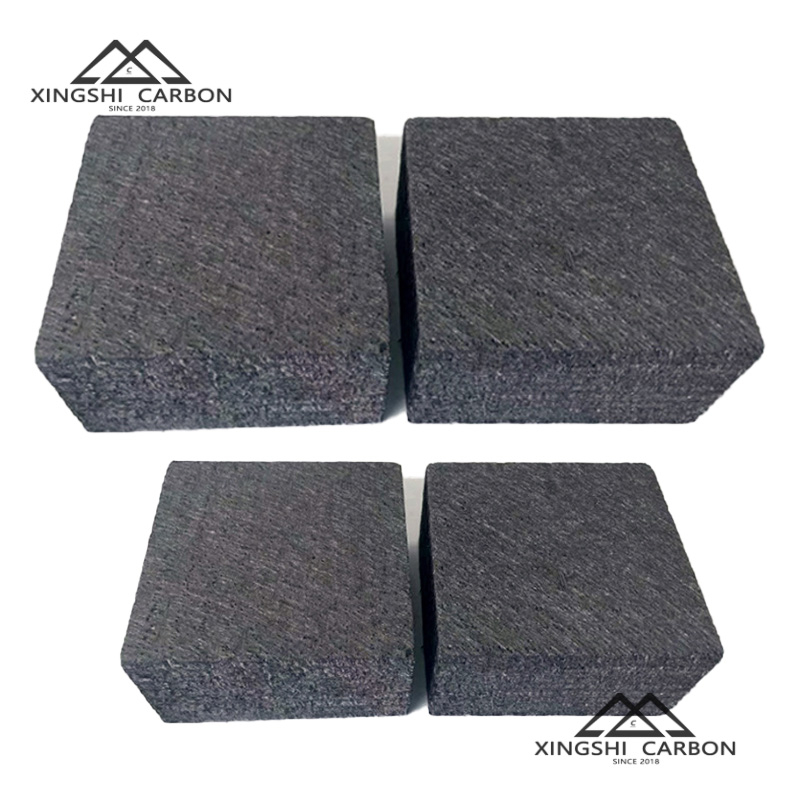

Solidified graphite felt, also known as hard felt/ Rigid Graphite Felt
Description of Rigid Graphitfe felt :
is divided into long fiber hard felt and short fiber hard felt according to the different fiber lengths in the hard felt. Long fiber hard felt is a graphite felt formed by impregnating soft felt with resin, laminating and solidifying it, and graphitizing it to form a graphite felt with a certain shape and self-supporting properties. Short fiber hard felt is made by crushing carbon fibers, adding a binder, and then molding, curing, and graphitizing them. The density of hard felt is generally higher than that of soft felt, and various forms of surface treatment can be carried out, such as pasting graphite paper, pasting carbon cloth, pasting carbon/charcoal, and coating. Meanwhile, according to the different types of raw materials for carbon fiber, hard felt can be divided into asphalt based hard felt, polyacrylonitrile based hard felt( Pan-based Graphite felt), adhesive based hard felt(Viscose-based graphite felt), etc.
Rigid Graphite felt Product Parameters:
Items | RTB Short-cutting | CSB/CSP Sandwich | RL13 Long fiber | RL16 Long fiber | ||
Raw Material | Viscose-base Graphite felt | Viscose-base Felt | Pitch based | Pitch based | ||
Density | g/cm3 | 0.17 | 0.16 | 0.13 | 0.16 | |
Fixed Carbon | % | ≥99.98 | ≥99.95 | ≥99.00 | ≥99.00 | |
Ash | ppm | 500 | √ | √ | √ | √ |
20 | √ | √ | √ | |||
5 | √ | √ | √ | |||
Compressive strength | MPa | plane direction | 0.4 | 0.9 | 0.35 | 0.45 |
Side direction | 0.25 | 0.1 | 0.08 | 0.12 | ||
Bending Strength | Mpa | plane direction | 1.5 | 2.5 | 1.45 | 1.60 |
Side direction | 1.1 | 0.5 | 0.70 | 1.00 | ||
Average thermal conductivity | Mpa | 1500℃ | 0.4 | 0.45 | ≤0.50 | ≤0.45 |
Coefficient of thermal expansion | X10-6/K | 1000℃ | 2.5 | 2.5 | 3.20 | 3.20 |
** Noted: 1. The above features are typical values.
We can customize types, specifications, drawings shapes, performance parameters, etc.according to customers’ requirement.
Welcome your specifications, Drawings! E-mail us for more details!
